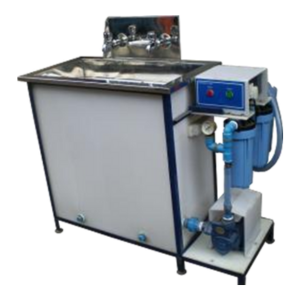

P.P.SETTLING TANK WITH S.S.WASH BASIN
Specification:
P.P. Settling Material : Made of P.P. 8 mm Thickness.
S.S. Wash Basin Material : Made of S.S. 304/18 Gauge Argon Arc are welded.
Out Drain : P.P. Pipe 1¼” Ø S.S. Elbow Outlet.
Drain : Brass S.S. Cromp. Plating fitted by Wash Basin.
Angle Frame : Fitted By caster Wheel with Painting.
S.S. Filter : Micron 0.5, 0.10
Settling Tank Size | S.S. Wash Basin Size | P.P. Partition | Storing Capacity |
36” x 15” x 33” | 32” x 13” x 8” (2 Tap) | 2 | 200 Ltrs. |
48” x 20” x 33” | 44” x 16” x 9” (3 Tap) | 3 | 350 Ltrs. |
60” x 24” x 33” | 56” x 20” x 10” (4 Tap) | 4 | 525 Ltrs. |
72” x 24” x 33” | 68” x 20” x 10” (5 Tap) | 4 | 625 Ltrs. |
